Steel Rollformed Products Ltd (SRP) have a comprehensive range of New Zealand made Unihatch ceiling hatches.

Our Unihatch is made from strong 1.0BMT Z275 galvanised steel to suit all commercial projects. Quality locks & latches are used in conjunction with Hettich German designed concealed hinges. All Unihatch components go through a rigorous Quality Control process.

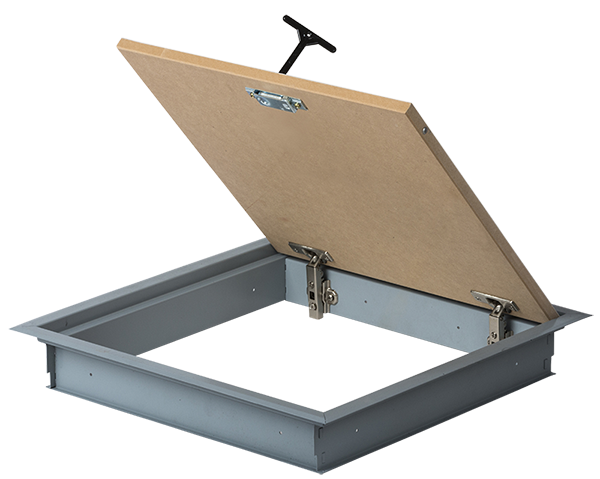

SRP Unihatch Flanged

Crafted in NZ from strong 1.0BMT Z275 steel with robust punched folded tab system ensuring strength and square dimensions. NZ made 16mm pre primed lid and Hettich German concealed hinges.

Codes:

SRPH300FL SRP Flanged Unihatch 300x300mm.
SRPH450FL SRP Flanged Unihatch 450x450mm.
SRPH530FL SRP Flanged Unihatch 530x530mm.
SRPH560FL SRP Flanged Unihatch 560x560mm.
SRPH600FL SRP Flanged Unihatch 600x600mm.

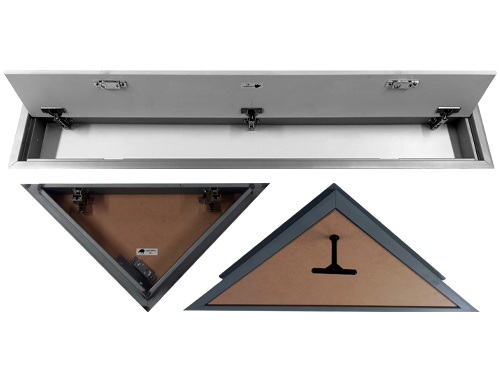

Special requests for no standard custom sizes are welcome

SRP Unihatch Flanged

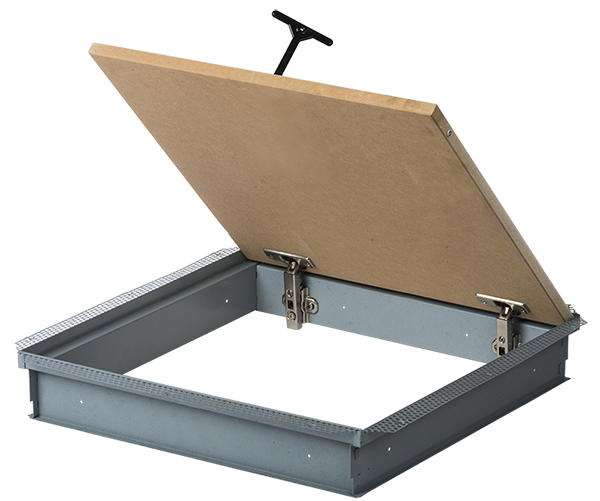

SRP Unihatch Set Bead

Crafted in NZ from strong 1.0BMT Z275 steel with robust punched folded tab system ensuring strength and square dimensions.

NZ made 16mm pre primed lid and Hettich German concealed hinges.

Pre punched set bead trim for fast simple fixing.

Codes:

SRPH300SB SRP Set Bead Unihatch 300x300mm.
SRPH450SB SRP Set Bead Unihatch 450x450mm.
SRPH530SB SRP Set Bead Unihatch 530x530mm.
SRPH560SB SRP Set Bead Unihatch 560x560mm.
SRPH600SB SRP Set Bead Unihatch 600x600mm.



Special requests for no standard custom sizes are welcome

SRP Unihatch Set Bead

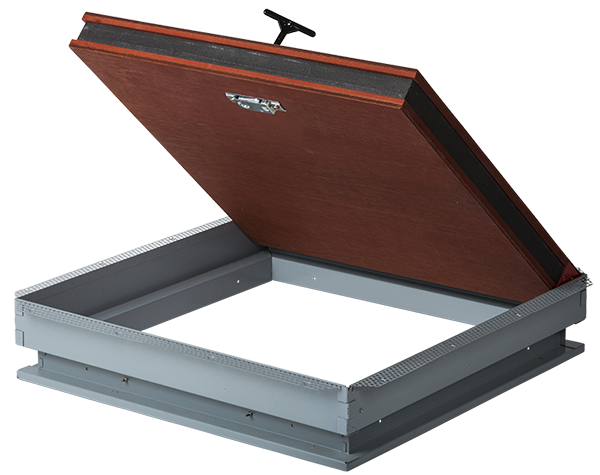

SRP Fire rated Hatch

Crafted in NZ from strong 1.0BMT Z275 steel with robust punched folded tab system ensuring strength and square dimensions.

Meranti lid with heavy duty 40mm industrial Rockwool. Lid frame includes 30x2mm graphite intumescent seal.

One hour fire rating (Exova Warrington).

Codes:

SRPFH300SB SRP Set Bead Fire Rated Unihatch 300x300mm.
SRPFH450SB SRP Set Bead Fire Rated Unihatch 450x450mm.
SRPFH530SB SRP Set Bead Fire Rated Unihatch 530x530mm.
SRPFH560SB SRP Set Bead Fire Rated Unihatch 560x560mm.
SRPFH600SB SRP Set Bead Fire Rated Unihatch 600x600mm.



Special requests for no standard custom sizes are welcome

SRP Fire rated Hatch

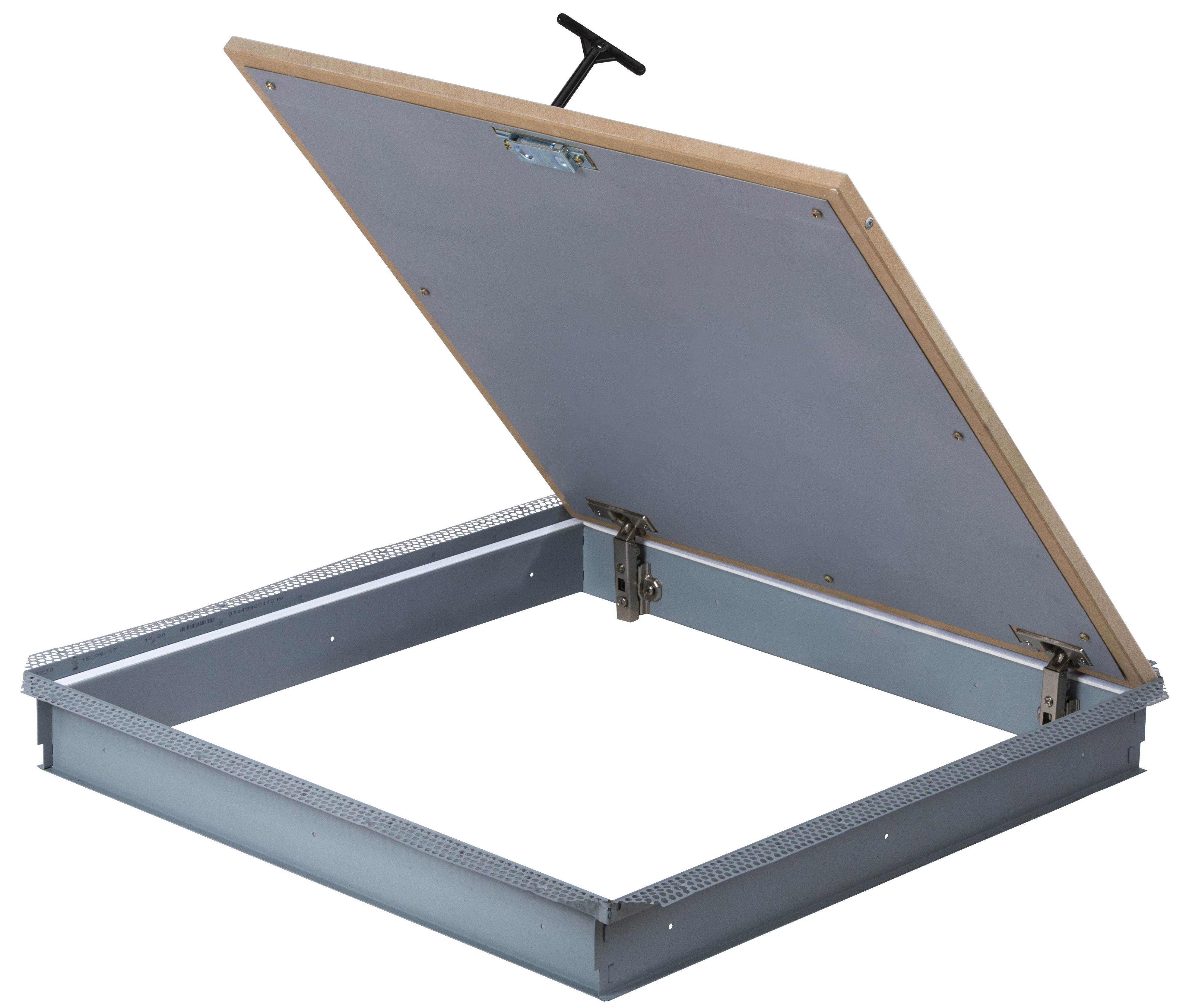

SRP Acoustic Unihatch

Acoustic set bead hatches are designed and manufactured to a 30 STC specification.

A 1.0BMT steel membrane is fixed to the MDF lid and closed cell seals ensure the 30 STC acoustic rating.

Codes:

SRPAH450SB SRP Set Bead Acoustic Unihatch 450x450mm.
SRPAH530SB SRP Set Bead Acoustic Unihatch 530x530mm.

As with all other hatches special requests for no standard custom sizes are welcome.

SRP Acoustic Unihatch

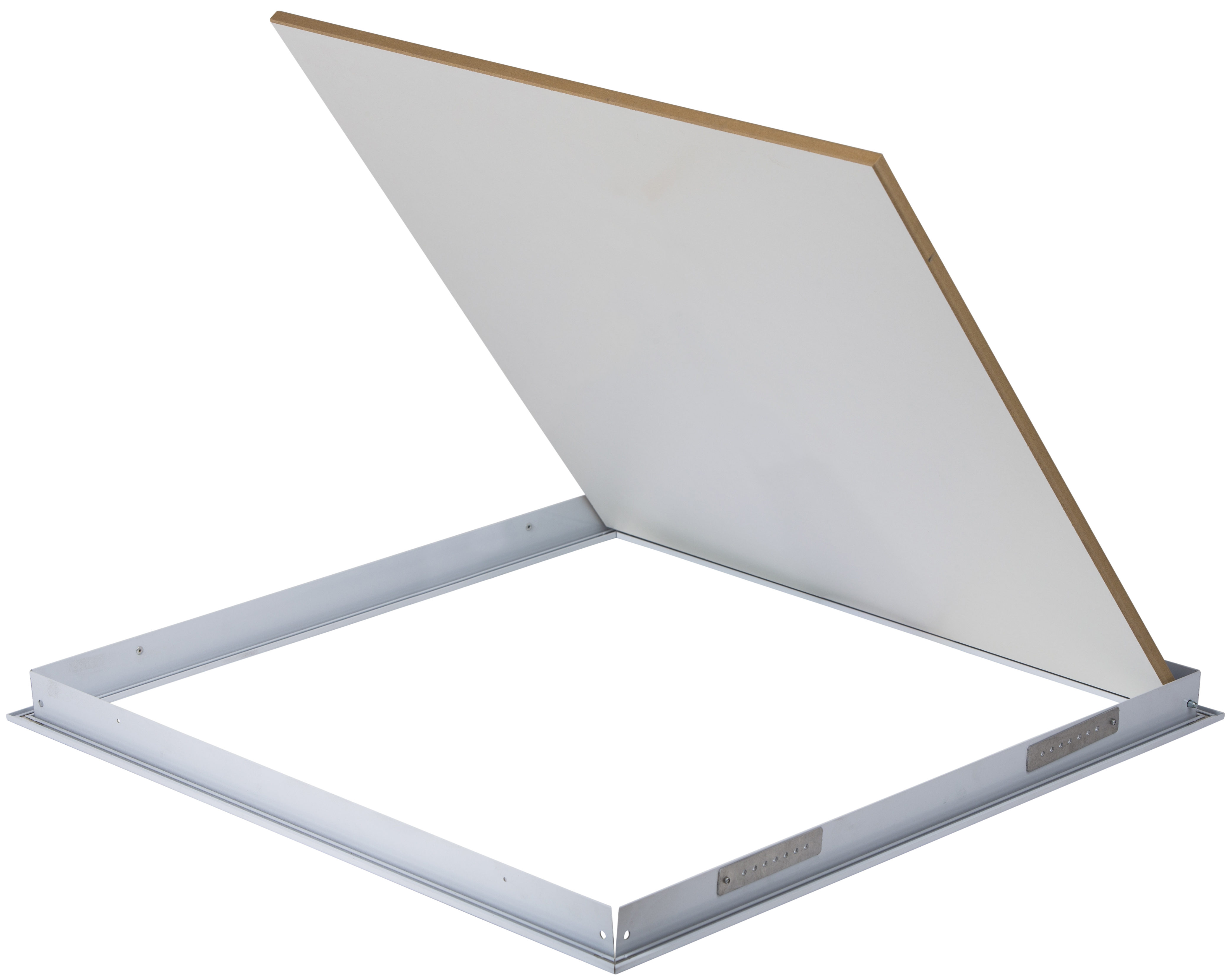

SRP Maxihatch

Prefinished 600x600mm modern designed ceiling hatch.

White aluminium powder coated frame.

Prefinished melamine removable hinged door.

Code:

SRPMH600FL SRP Flanged White Aluminium Maxi Hatch 600x600mm.



NZ manufactured with multi fixing points.

SRP Maxihatch

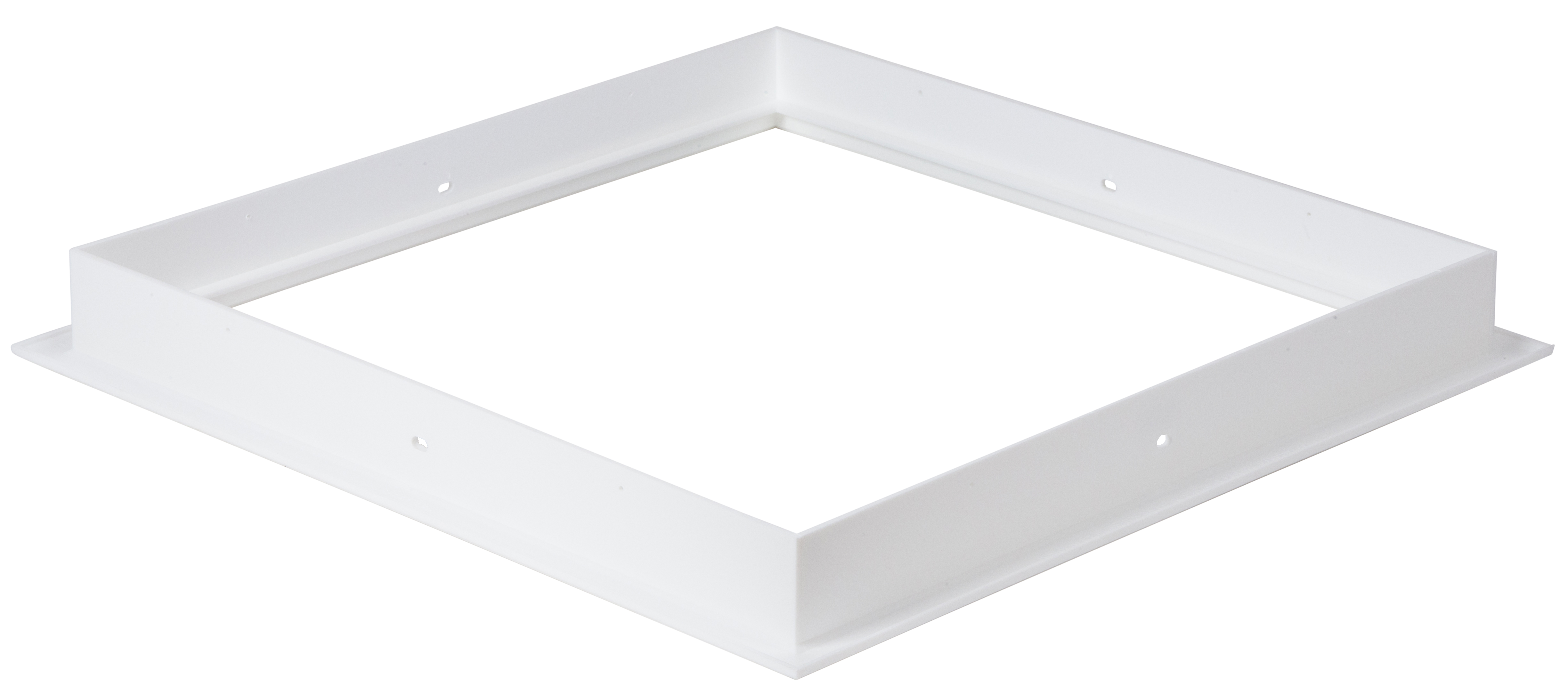

SRP Kimberley Manhole Frame

Fits standard ceiling joist centres.

Paintable high impact plastic finish.

Codes:

SRPMF4545FL SRP Flanged Man Hole Frame 450x450mm.
SRPMF4560FL SRP Flanged Man Hole Frame 450x600mm.
SRPMF6060FL SRP Flanged Man Hole Frame 600x600mm.



Fast easy installation, made in Australia.

SRP Kimberley Manhole Frame
