Steel Rollformed Products Ltd (SRP™) has selected the very best industry standard profiles to produce a range of ceiling battens that are most popular in the industry for strength, reliability and ease of installation.

Steel Rollformed Products Ltd (SRP™) has selected the very best industry standard profiles to produce a range of ceiling battens that are most popular in the industry for strength, reliability and ease of installation. Accuracy of manufacture and use of top quality materials, such as GALVSTEEL® by New Zealand Steel, are the key to quality, durability and strength.

16mm BATTEN

SRP™ 16mm Batten is low profile, suitable for apartments, offices and residential ceilings. It can be direct fixed or combined with the Top Cross rail and TCR clip to form a 16mm suspended ceiling.

Stock lengths: 3.6 & 4.8m

Face width: 38mm

Code: SRPCB016000

16mm BATTEN

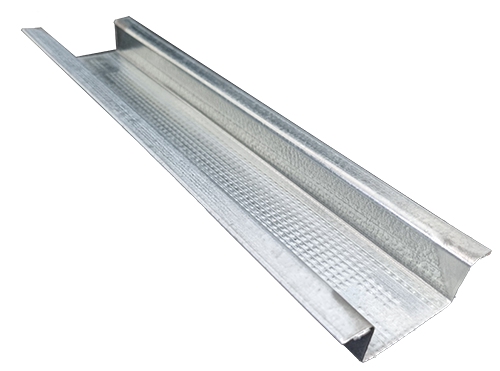

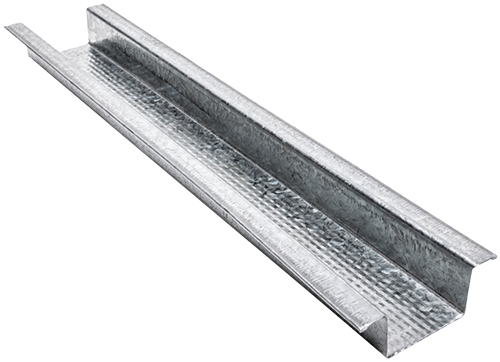

22mm BATTEN

SRP™ 22mm batten is low profile offering strength & light weight and is suitable for wall strapping or direct fixing via the adjustable wall fix clip. The Strongback and furring strap combine with the 22mm Batten to form a 22mm suspended ceiling system.

Stock lengths: 3.6, 4.8, 6M

Face width: 38mm

Code: SRPCB022000

22mm BATTEN

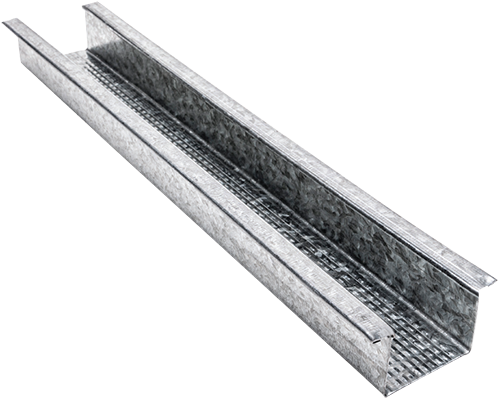

28mm BATTEN

SRP™ 28mm Batten is suitable for larger spans and multiple layers. It can be direct fixed or combined with TCR and TCR clip to form a 16/28 suspended ceiling system.

Stock lengths: 3.6, 4.8. 6m

Face width: 38mm

Code: SRPCB028000

28mm BATTEN

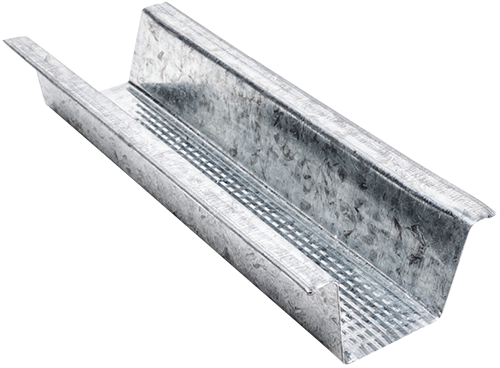

35mm BATTEN

A robust profile that matches up to the ribbon plate thickness of house framing.

Stock lengths: 3.6, 4.8, 6m

Face width: 38mm

Code: SRPCB035000

35mm BATTEN

35mm NOTCHED BATTEN

A robust profile that matches up to the ribbon plate thickness of house framing. Notched Batten can be cut to length with a standard tongue of 25mm either end.

Face width: 38mm or 50mm wide face

Codes: SRPNB035000, SRPNB35WIDE

35mm NOTCHED BATTEN

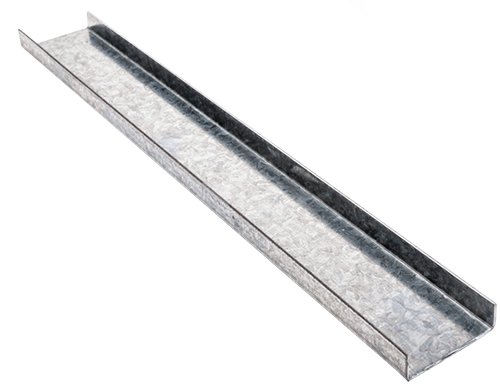

38 X 12mm STRONGBACK CHANNEL

Combines with 22mm Batten and furring strap to make a 22mm suspended ceiling.

Stock lengths: 3.6, 4.8m

Codes: SRPSB036115 (3.6m), SRPSB048115 (4.8m)

38 X 12mm STRONGBACK CHANNEL

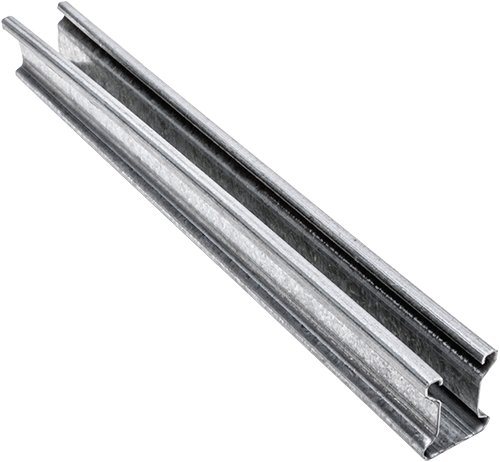

26 X 21mm TCR

Combines with 16mm or 28mm Batten to form a 16/28 suspended ceiling system.

Stock lengths: 3.6m, 4.8m

Available in: 0.55 BMT or 0.75BMT

Codes:
SRPTR036055 3.6m length 0.55BMT
SRPTR036075 4.8m length 0.75BMT
SRPTR048055 3.6m length 0.55BMT
SRPTR048075 4.8m length 0.75BMT

26  X 21mm TCR

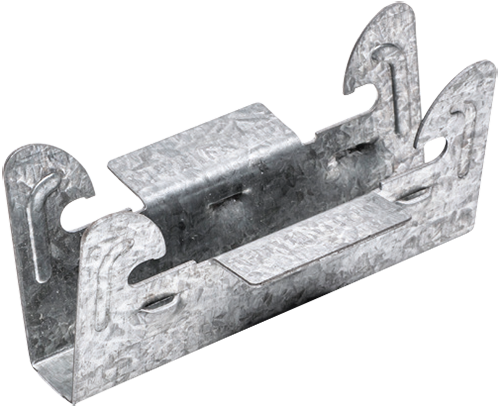

TCR CLIP

Our Top Cross Rail clip is designed to click into the TCR at your specified centres.

Code: SRPTCE16028

TCR CLIP

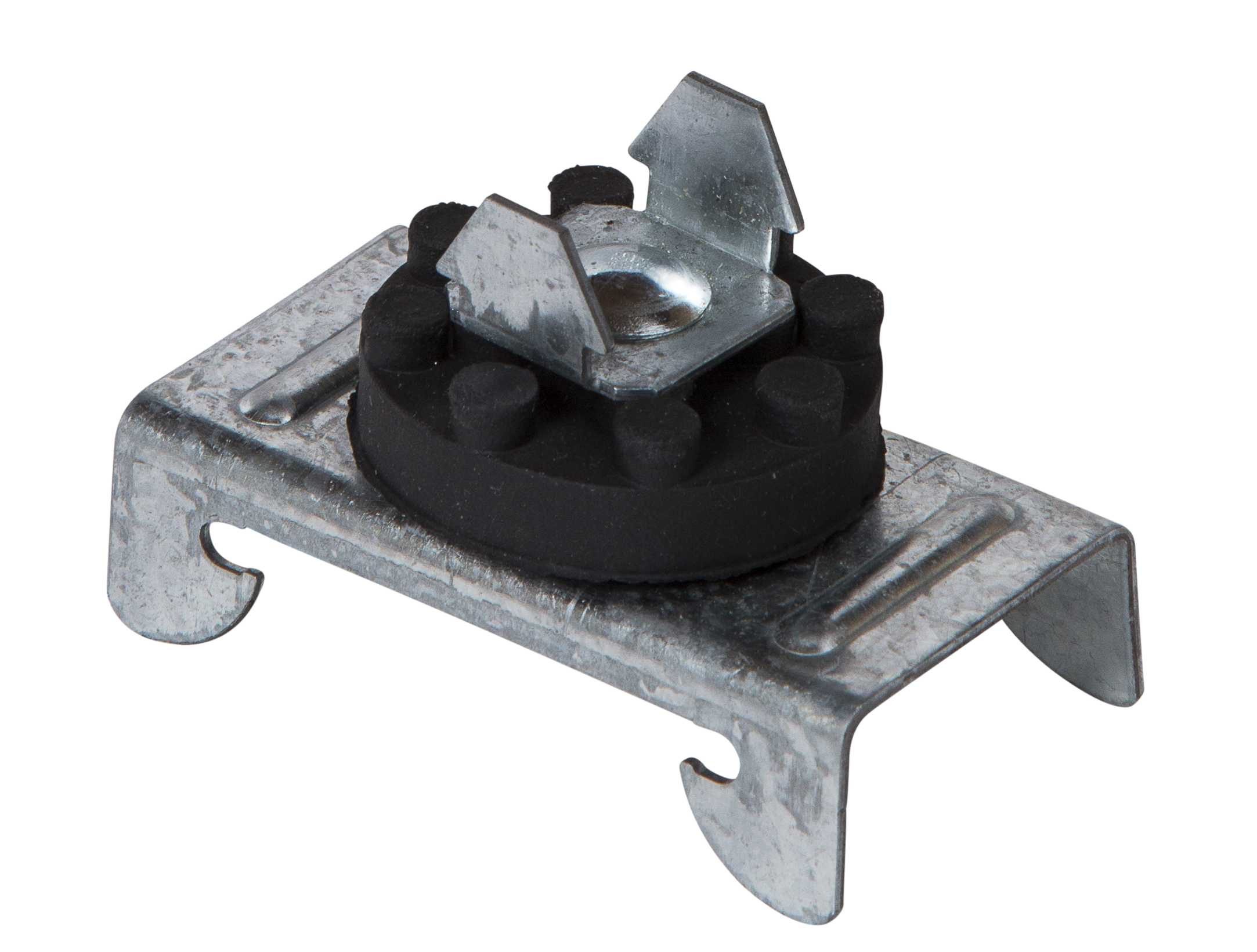

Top Cross Rail Acoustic Clip

Sound Isolation clip designed for all Top Cross rail variants.

Suitable for 16mm and 28mm batten.
Code: SRPTCAE1628

Top Cross Rail Acoustic Clip

FURRING STRAP CLIP

Works to combine 22mm Batten and Strongback to form a 22mm suspended ceiling system.

Code: SRPFSE22000

FURRING STRAP CLIP

Clipfix Clip

For faster connection of 22mm batten to Strongback.

Complete with pre drilled tab for suspension wire.

Code: SRPCFE22000

Clipfix Clip

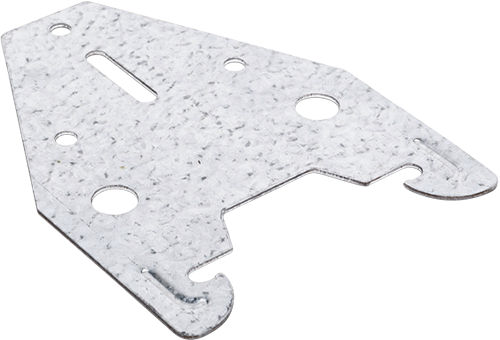

16/28mm DIRECT FIX CLIP

Offering 19mm of slot adjustment the 16/28mm clip combines with 16mm or 28mm Batten for direct fixing.

Code: SRPDCE16028

16/28mm DIRECT FIX CLIP

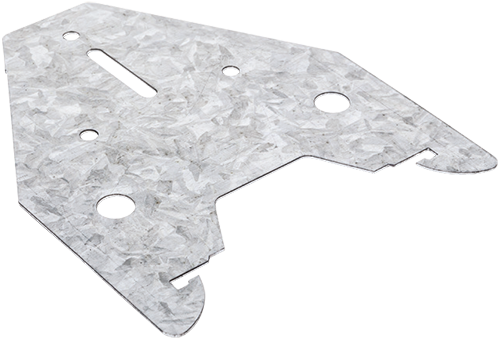

22/35mm DIRECT FIX CLIP

Offering 25mm of slot adjustment the 22/35 clip combines with the 22mm or 35mm Batten for direct fixing.

Code: SRPDCE22035

22/35mm DIRECT FIX CLIP

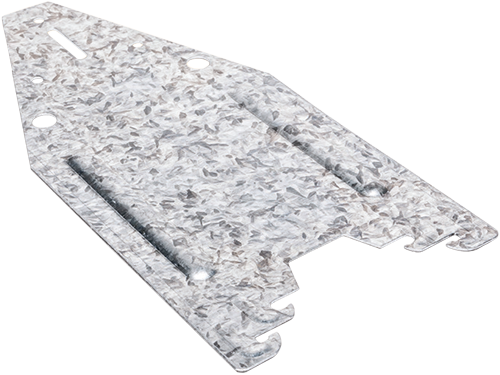

UNIVERSAL DIRECT FIX CLIP

Our Universal clip has 21mm slot adjustment and can combine with all four Batten sizes.

Code: SRPMCRE000

UNIVERSAL DIRECT FIX CLIP

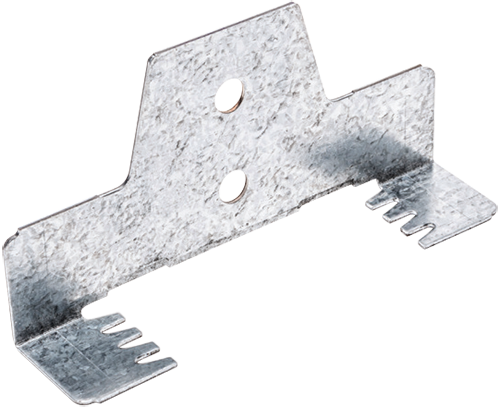

ADJUSTABLE WALL FIX CLIP

Used for strapping concrete and block walls. Accommodates 22mm & 35mm Battens.

Code: SRPACE22035

ADJUSTABLE WALL FIX CLIP

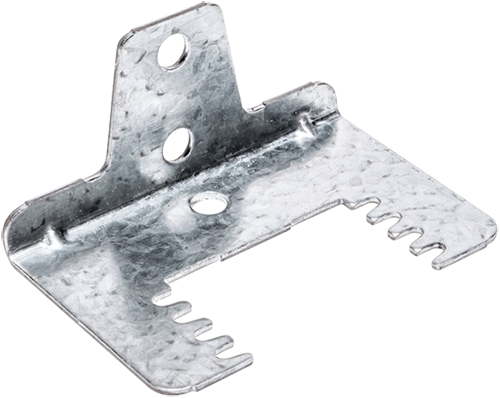

ADJUSTABLE WALL FIX CLIP LONG SERIES

Used for strapping concrete and block walls. Accommodates 16mm or 28mm Battens.

Code: SRPACLE1628

ADJUSTABLE WALL FIX CLIP LONG SERIES

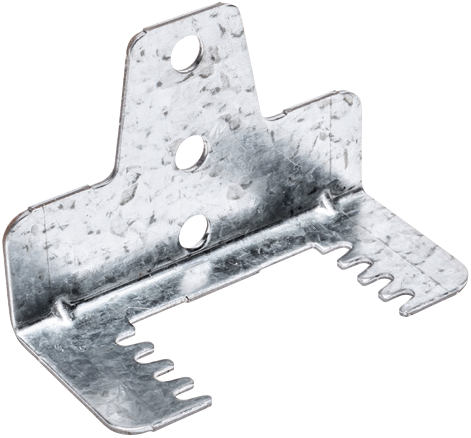

ADJUSTABLE WALL FIX CLIP SHORT SERIES

Used for strapping concrete and block walls. Accommodates 16mm or 28mm Battens.

Code: SRPACSE1628

ADJUSTABLE WALL FIX CLIP SHORT SERIES

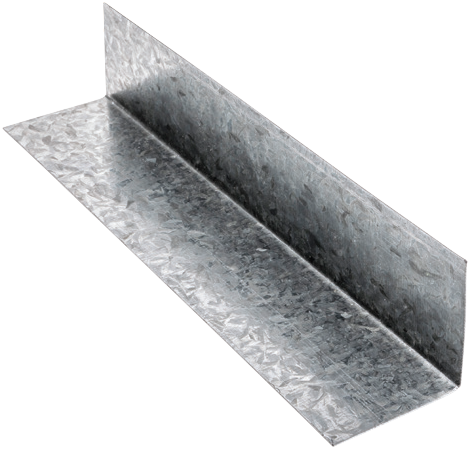

ANGLE – 35 X 35 AND 40 X 40

Commonly used as room perimeter and bracing.

Code:
SRPWA035055 35 x 35mm wall angle 0.55BMT
SRPWA040055 40 x 40mm wall angle 0.55BMT

Various other equal and unequal angle combinations are available on request.

ANGLE – 35 X 35 AND 40 X 40

PERIMETER TRACK FOR ALL SIZED BATTENS

Runs the perimeter of the room to support ceiling Batten, Strongback or TCR.

Stock lengths: 3, 3.6m

Codes:
SRPPT016000 Perimeter track for 16mm batten.
SRPPT022000 Perimeter track for 22mm batten.
SRPPT028000 Perimeter track for 28mm batten.
SRPPT035000 Perimeter track for 35mm batten.

PERIMETER TRACK FOR ALL SIZED BATTENS

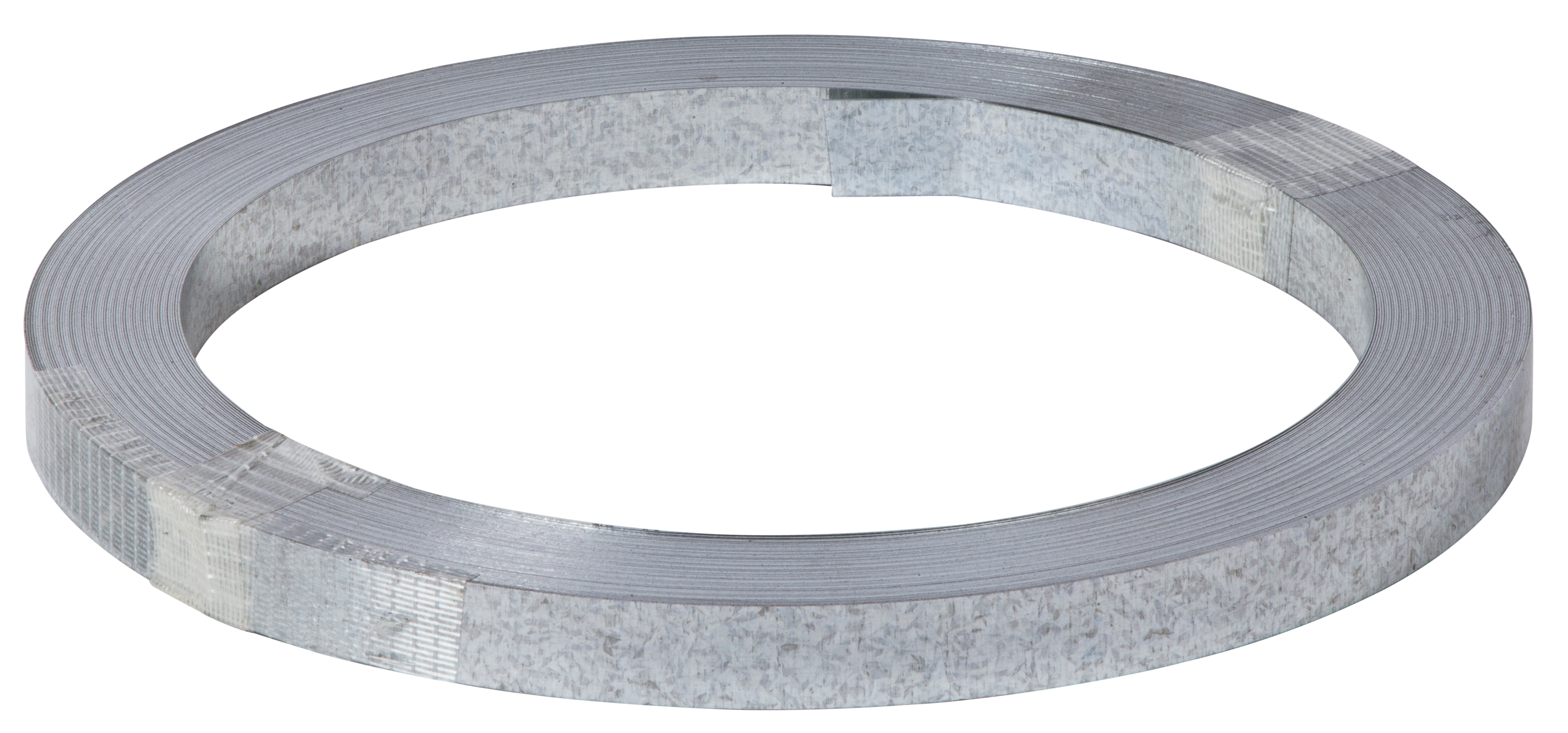

Earth Strap

Used for earthing purposes and to secure insulation.

Comes in either 0.38mm or 0.55mm BMT.

25mm strip width and 45LM per roll.

Code: SRPES000000

Earth Strap
