SRP™ has a wide range of easy to install steel wall products. Each SRP™ Wall system is characterized by lightweight handling, a familiar installation process and many durable features for quality building solutions.

TABLE 1.1 and TABLE 1.2, in conjunction with FIGURE 1, show the available standard Steel SRP™ Stud and SRP™ Track sizes with the corresponding BMT [Base Metal Thickness] range. Other sizes, subject to availability of structural data, are also offered. SRP™ Standard Tracks are available in 3.0m standard stock lengths for all sizes; other lengths or cut to length are also available on request. SRP™ Whisperwall™ and Standard SRP™ Studs are available in 2.7m, 3.0m, 3.3m, 3.6m and 4.2m standard stock lengths; cut to length is also available on request.


Dowload our Walls Handbook
SRP Ltd Wall Handbook PDF Download

SRP™ Continuous Nog Track [FIGURE 1 and FIGURE 17] is available in 3.0m standard stock lengths for all standard SRP™ Stud sizes and standard SRP™ Stud centres. SRP™ Continuous Nog Track with other SRP™ Stud centres is also available on request.


Steel Rollformed Products™ Limited reserves the right to adjust, alter, advance or refine the profile without notice. Should you require any further information or wish to discuss your individual requirements, please contact us

SRP Wall Product Range

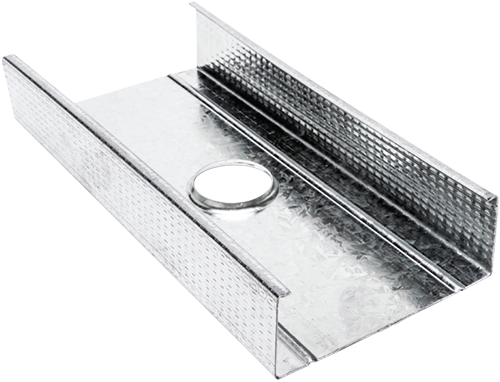

STEEL STUDS

Steel Stud Width 0.55BMT  0.75BMT  1.15BMT
51mm SRPSS051055 SRPSS051075 SRPSS051115
64mm SRPSS064055 SRPSS064075 SRPSS064115
75mm SRPSS075055 SRPSS075075 SRPSS075115
92mm SRPSS092055 SRPSS092075 SRPSS092115
100mm SRPSS100055 SRPSS100075 SRPSS100115
150mm SRPSS150055 SRPSS150075 SRPSS150115


Our standard steel stud has a face width of 32mm.

STEEL STUDS

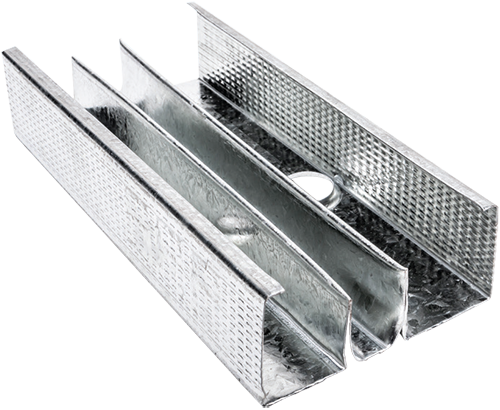

WHISPERWALL ACOUSTIC RATED STUD

Provides superior acoustic properties with additional fire rated properties.

Whisperwall Stud Width 0.55BMT 0.75BMT
92mm SRPWW092055 SRPWW092075


Whisperwall has a face width of 40mm.

WHISPERWALL ACOUSTIC RATED STUD

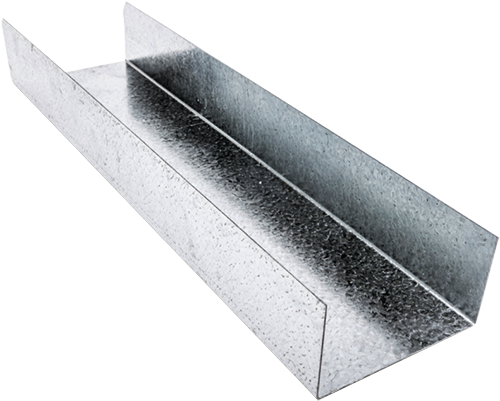

BOTTOM TRACK

Bottom Track Width 0.55BMT 0.75BMT 1.15BMT
51mm SRPST051055 SRPST051075 SRPST051115
64mm SRPST064055 SRPST064075 SRPST064115
75mm SRPST075055 SRPST075075 SRPST075115
92mm SRPST092055 SRPST092075 SRPST092115
100mm SRPST100055 SRPST100075 SRPST100115
150mm SRPST150055 SRPST150075 SRPST150115


Bottom track has a 30mm leg length and 3000mm track length.

BOTTOM TRACK

Pre-Punched Bottom Track

For ease of installation when using heavy gauge SRP product. Pre-punched screw holes at 50mm centres.

Pre-Punched Track Width 1.5BMT 2.0BMT 3.0BMT
92mm SRPSTP09215 SRPSTP09220 SRPSTP09230
150mm SRPSTP15015 SRPSTP15020 SRPSTP15030


For ease of installation when using heavy gauge SRP product. Track has pre-punched screw holes at 50mm centres.

Track length 3000mm.

Pre-Punched Bottom Track

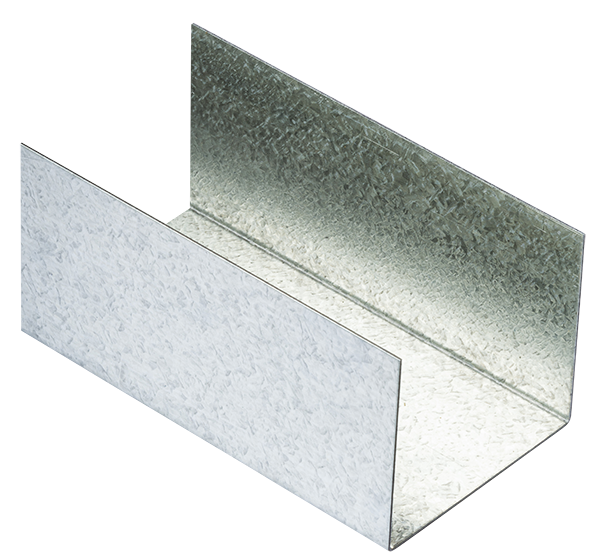

Deflection Head Track

Allows for vertical deflection. Available in various leg lengths to suit the application.

Deflection Track Width 0.55BMT 0.75BMT 1.15BMT
51mm SRPDT051055 SRPDT051075 SRPDT051115
64mm SRPDT064055 SRPDT064075 SRPDT064115
75mm SRPDT075055 SRPDT075075 SRPDT075115
92mm SRPDT092055 SRPDT092075 SRPDT092115
100mm SRPDT100055 SRPDT100075 SRPDT100115
150mm SRPDT150055 SRPDT150075 SRPDT150115


Our standard deflection track has a 50mm leg length however SRP can manufacture various leg lengths to suit the application.

Track length 3000mm.

Deflection Head Track

Slotted Deflection Head Track

Allows for vertical deflection with the stud screwed to the slotted head track.

Eliminates the need for a row of nogging within 100mm of the head track.

Can also be used for stud bridging where stud is used as a ceiling.

Slot centres 25mm, length 32mm and width 6.5mm.

Slotted Deflection
Track Width
0.75BMT 1.15BMT 1.5BMT
92mm SRPDTS92075 SRPDTS92115 SRPDTS92150
150mm SRPDTS15075 SRPDTS15115 SRPDTS15015

Track length 3000mm.

Slotted Deflection Head Track

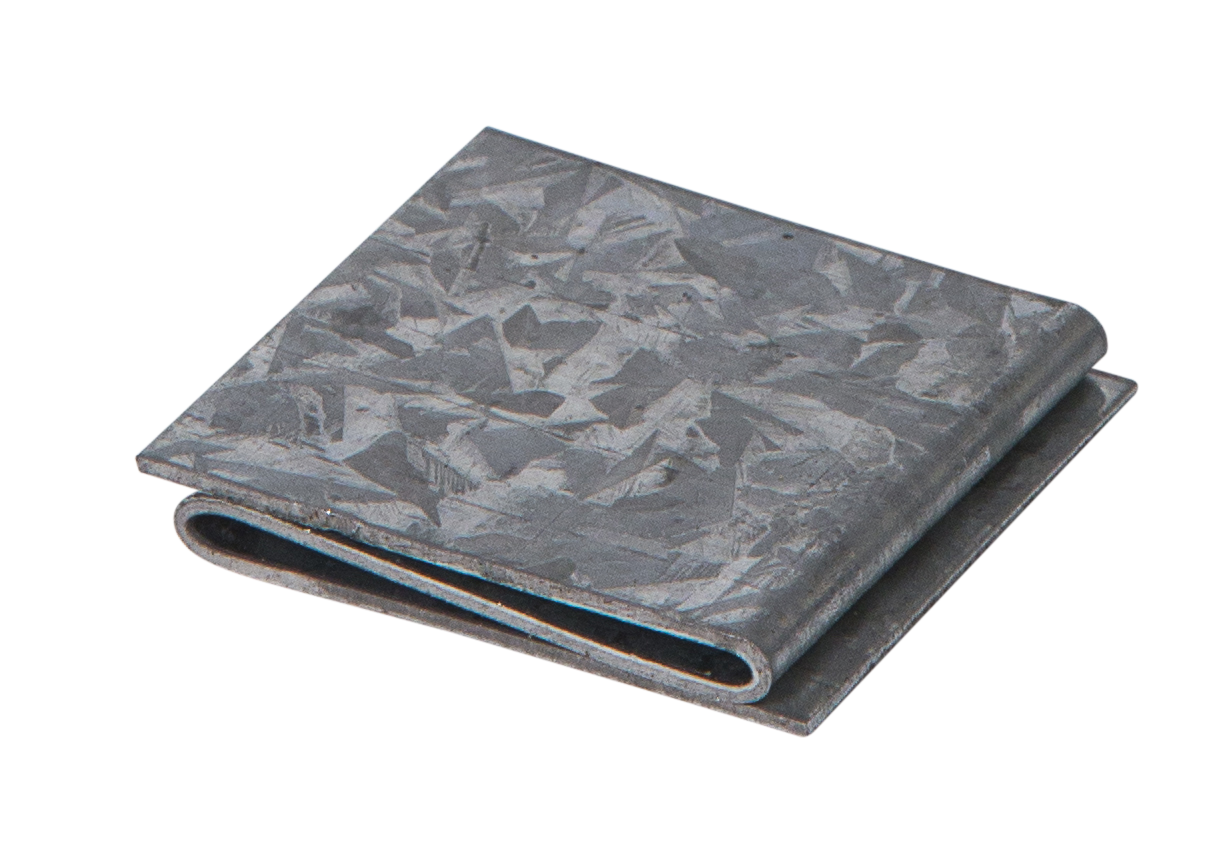

Staggered Stud Clip

Used top and bottom of studs to friction fit studs to track.

Code: SRPSCE00000 Staggered Stud Clip



Staggered Stud Clip

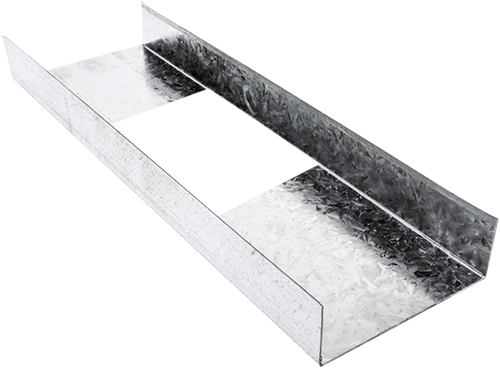

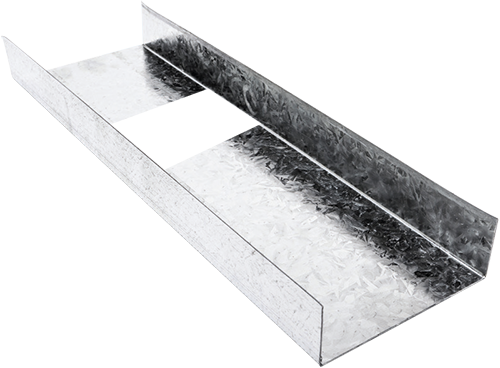

NOG TRACK

Nog Track 0.75BMT 1.15BMT
51mm SRPNT051075 SRPNT051115
64mm SRPNT064075 SRPNT064115
75mm SRPNT075075 SRPNT075115
92mm SRPNT092075 SRPNT092115
100mm SRPNT100075 SRPNT100115
150mm SRPNT150075 SRPNT150115


Available in standard 300mm, 400mm, 450mm and 600mm slot centres.

Track length 3000mm.

NOG TRACK

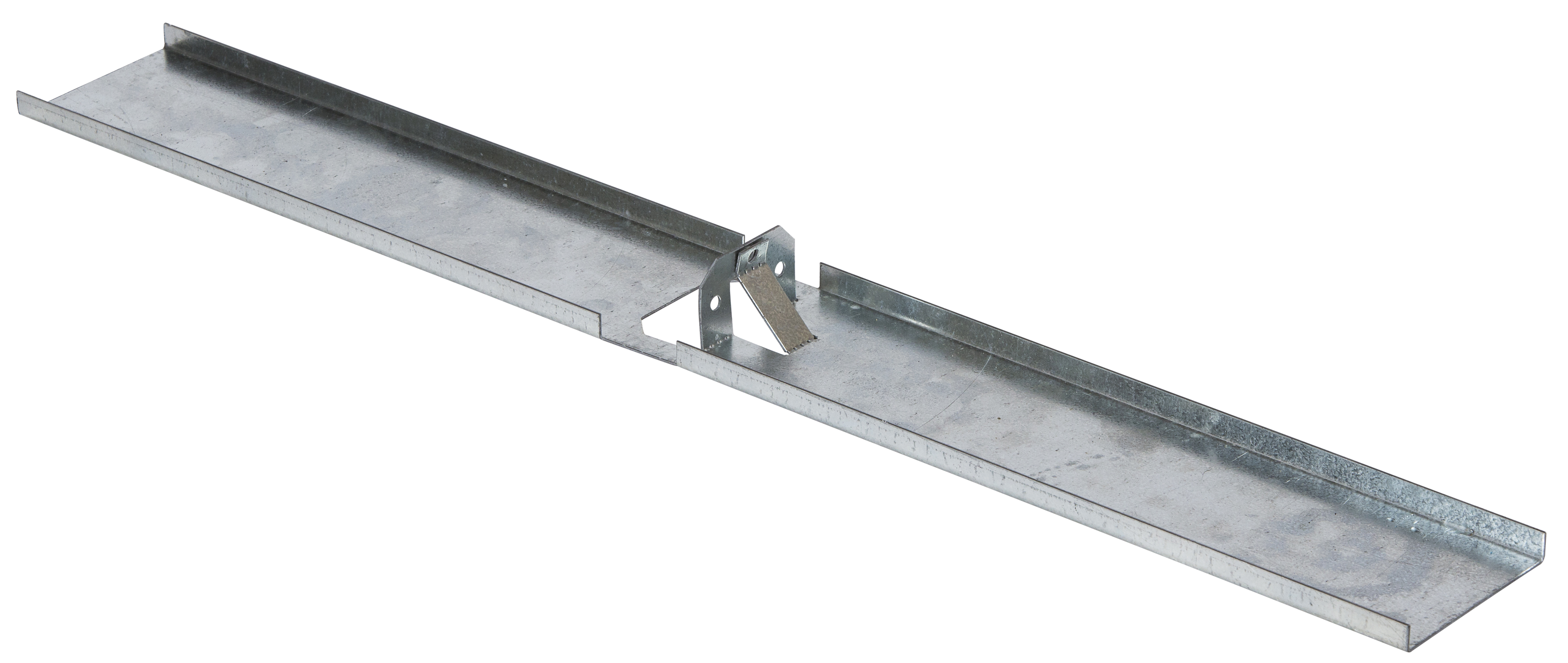

Face-Fix Nog

Quick and easy to fix after framing has already been installed. Designed for both standard and acoustic stud.

Simply bend out the pre-punched bracing tabs and fix to the edge of the stud. Track length 3000mm.

Codes:

SRPNTFF6475 64mm stud face-fix nog track 0.75BMT
SRPNTFF9275 92mm stud face-fix nog track 0.75BMT
Face-Fix Nog

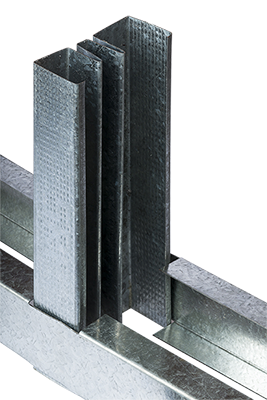

Whisperwall Nog Track

Two-piece nog track designed for Whisperwall sheet joins. Track length 3000mm.

Code: SRPWWNT9275 Whisperwall Nog Track 0.75BMT
Whisperwall Nog Track

Resilient Channel

Isolates plasterboard from the framing studwork to substantially improve sound insulation.

Track length 3658mm.

Code: SRPRC360000 Resilient Channel
Resilient Channel

Zero Clip & Acoustic Zero Clip

Combines with 16mm and 28mm batten to provide a wall strapping solution. Space ceiling at 1200mm centres and walls at 900mm centres.

The acoustic zero clip comes complete with a threaded rubber washer to isolate the wall from the framing.

Codes:

SRPZCE16028 Zero Clip
SRPZCAE1628 Acoustic Zero Clip
Zero Clip & Acoustic Zero Clip

Zero Clip with TruBolt

Used for strapping concrete and block walls. Threaded hole and masonry anchor included (65mm – 180mm).

Combines with 16mm and 28mm batten and adjustable length allows insulation to be installed.

Codes:

SRPZCRE0065 Zero Clip with 65mm Bolt.
SRPZCRE0100 Zero Clip with 100mm Bolt.
SRPZCRE0120 Zero Clip with 120mm Bolt.
SRPZCRE0150 Zero Clip with 150mm Bolt.
SRPZCRE0180 Zero Clip with 180mm Bolt.
Zero Clip with TruBolt

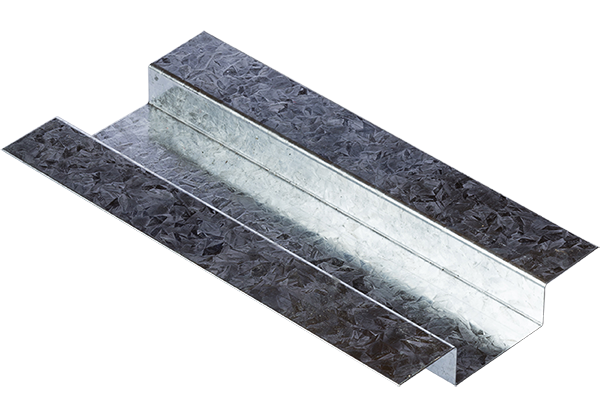

Nog Bracket

200mm length with 18mm step down for plywood in 0.75BMT. Made to fit either standard face stud width or wider acoustic Whisperwall.

Codes:

SRPSW200075 Standard Wall Nog Bracket.
SRPWW20075 Whisperwall Nog Bracket.
Nog Bracket

Plasterbead 90 degree External Angle

A perforated angle for strengthening external corners.

Complete with Neptune coating (clear lacquer) to ease removal of any dirt or grease prior to plastering.

Codes:

SRPPBE24000 Plasterbead Angle 2.4m.
SRPPBE27000 Plasterbead Angle 2.7m.
SRPPBE30000 Plasterbead Angle 3.0m.
SRPPBE36000 Plasterbead Angle 3.6m.
Plasterbead 90 degree External Angle
